Overview

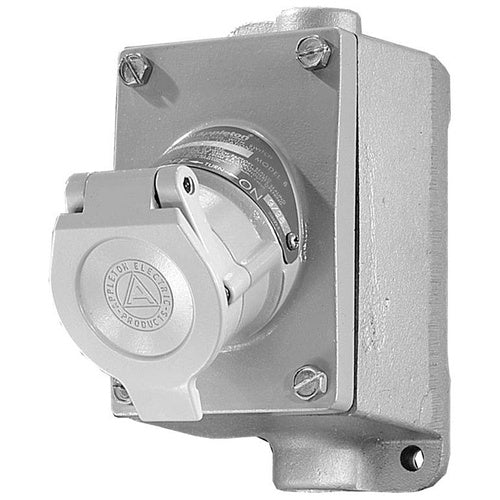

ENR22201SA Appleton Plugs & Receptacles, UL-Line Intercharger 20 Series, TWO GANG RECEPT ASSY AL

Product Specifications

• Full Technical Description: Pin and Sleeve Receptacle Assembly, Type Dead End, Voltage Rating 125 VAC, Current Rating 20 Ampere, Number of Poles 3, Number of Wires 2, Hub Size 3/4 Inch, Box Type Two Gang, Cover Type Spring, Mating Plug ECP-2023, NCP-2023, Enclosure Class I Group C
• Catalog Number: ENR22201SA
• Manufacturer: Appleton
• Product Series: UL-Line Intercharger 20
• Family Series: Appleton Plugs & Receptacles, UL-Line Intercharger 20 Series
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 2
• Voltage: 125 VAC
• Body Type: Dead-End Double Gang
• Connection Type: Receptacle
• GFCI: No
• NEMA Configuration: 5-20R
• Color: Gray
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: UL
• Comments: Explosion Proof
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
