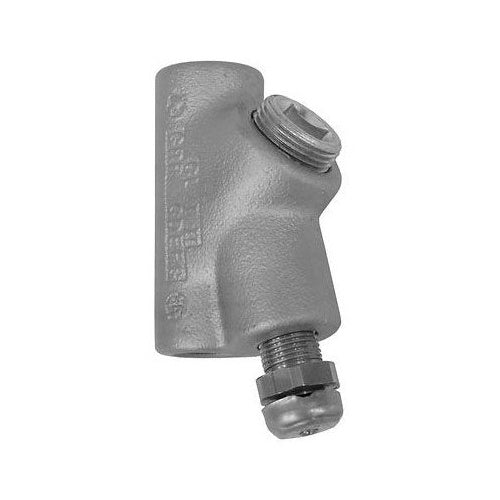

Appleton EYD6 2" Malleable Drain Seal

Overview

Appleton EYD6 2" Malleable Drain Seal

Product Specifications

• UPC: 78138162081
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Catalog Number: EYD6
• Brand Name: Unilet[R]
• Model: EYD
• Type: Drain
• Turning Radius: 2.31 Inch
• Trade Size: 2 Inch
• Connection Type: Female
• Material: Epoxy Powder Coated Chromate Zinc Electroplated Grayloy Iron
• Catalog Description: UNILETS EYD SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING, SIZE: 2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 2.31 IN, LENGTH: 6-1/4 IN, WIDTH: 3 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS II, DIVISION 1 AND 2 GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2 Inch Trade Size; Vertical Mounting Position; 2.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 6.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620819
• SKU Name: appleton eyd6

Resources

• Manufacturer Spec Sheet
