Overview

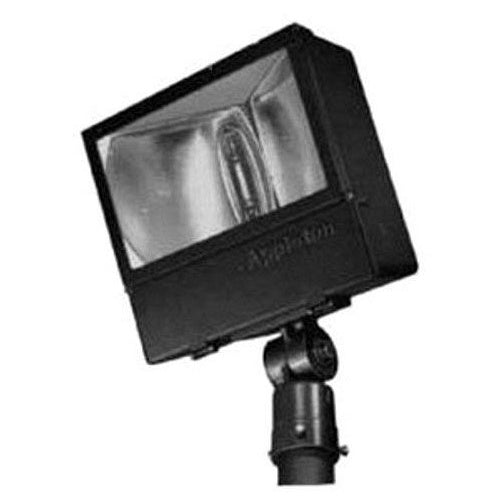

APPLETON ELECTRIC GAM775P5MT Floodlight, Power 400W

Product Specifications

• Full Technical Description: Floodlight, Power 400W | BJ9NQE
• Catalog Number: GAM775P5MT
• Manufacturer: APPLETON ELECTRIC
• Height: 41.35 cm
• Length: 32.87 cm
• Width: 12.83 cm
• Country Of Origin: US
• Weight: 0.333 kg
• Ambient Temp.: 55°C
• Application: For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting
• Approvals: csa.png, ul.png
• Ballast Quantity: 1
• Ballast Type: Super Constant Wattage Autotransformer , Super Constant Wattage Autotransformer (S. C.W.A.)
• Enclosed: Yes
• Family Series: Appleton Light Fixtures Series, AREA MASTER Series
• Fixture Material: Aluminum
• Fixture Type: Pole, Slip Fit Mount
• Fixture Watts: 454 W
• Gasketed: Yes
• Guarded: No
• Housing Finish: Architectural Bronze Polyester
• Housing Material: Copper Free Aluminum , Copperfree (4/10 Of 1 Pct Maximum) Aluminum
• Ip Rating: IP66
• Junction Box: No
• Lamp Type: 400 Wtt Mogul Pulse Start Metal Halide
• Lamp Watts: 400 W
• Lens Material: Glass
• Marine Rated: Yes
• Material: Copperfree (4, 10 Of 1 Pct Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Stainless Steel Bolts , Copperfree (4/10 Of 1 Pct Maximum) Aluminum Lens Door, Silicone Rubber Gasket ...Read More Copperfree (4, 10 Of 1 Pct Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Stainless Steel Bolts , Copperfree (4/10 Of 1 Pct Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Stainless Steel Bolts
• Mounting: Integral Pole
• No. Of Lamps: 1
• Nominal Voltage: 120/208/240/277/480V AC
• Power: 400 W
• Product Series: Area Master Series
• Series: Area Master Series
• Style: Flood
• Temp.: 115°C Supply Wire
• Type: Integrally Ballasted Floodlight
• Voltage: 120/208/240/277/480V , 120/240/208/480/277V AC
• Wet Locations: Yes
