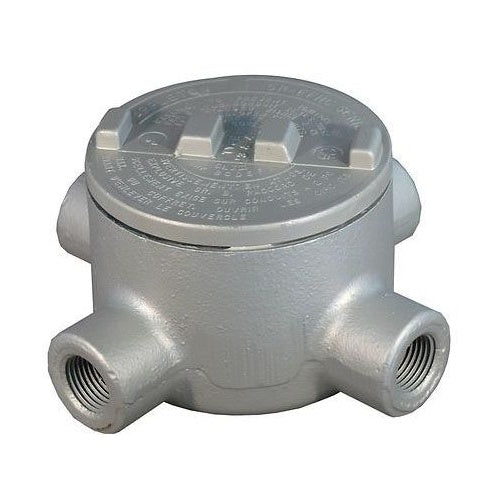

Appleton GRX100M 1" X-Type Conduit Body

Product Specifications

• Part Number: GRX100M
• UPC: 78138177331
• UPC: 781381773317
• Cover Type: Externally Threaded
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Approval: UL, CSA C22.2
• Additional Information: Application Indoor/Outdoor, Pulling of Wires
• Style: X
• Hub Size: 1 Inch
• Hub Type: External
• Number of Hubs: 4
• Hub Location: (4) Side
• Capacity: 18 Cu Inch
• Shape: Round
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Malleable Iron Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
• Manufacturer: Appleton Electric
• UNSPSC: 39121308
