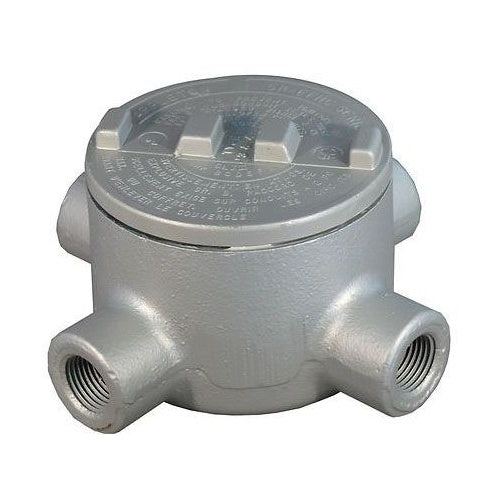

Appleton GRX150M 1-1/2" X-Type Conduit Body

Product Specifications

• Part Number: GRX150M
• UPC: 78138177333
• UPC: 781381773331
• Shape: ROUND
• Cover Type: EXTERNALLY THREADED
• Cover Opening Diameter: 4.88 INCH
• Enclosure: CLASS I GROUP B C D, CLASS II GROUP E F G, CLASS III
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Brand Name: Appleton[R]
• Model: GR
• Style: X
• Hub Size: 1-1/2 INCH
• Hub Type: EXTERNAL
• Number of Hubs: 4
• Hub Location: (4) SIDE
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Round Shape; 1-1/2 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Externally Threaded Cover Type; 72 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 4.88 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Malleable Iron Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
• Manufacturer: Appleton Electric
• UNSPSC: 39121308
