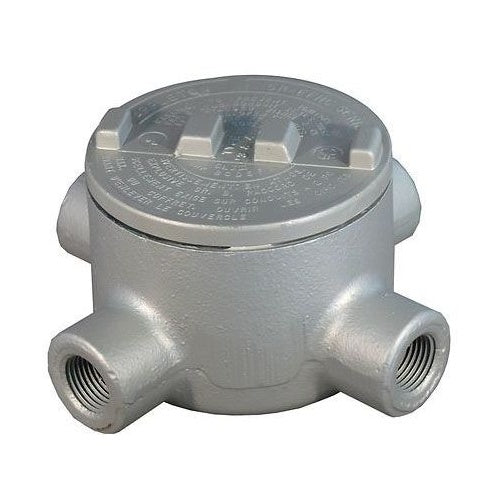

APPLETON ELECTRIC GRX200M Conduit Outlet Body, Hub Size 2 Inch

Product Specifications

• Full Technical Description: Conduit Outlet Body, Hub Size 2 Inch | BJ9QAH
• Catalog Number: GRX200M
• Manufacturer: APPLETON ELECTRIC
• Height: 15.57 cm
• Length: 35.41 cm
• Width: 16.99 cm
• Country Of Origin: US
• Weight: 0.18 kg
• Approvals: csa.png, ul.png
• Box Composition: Malleable Iron
• Connection Type: Threaded
• Cover Composition: Malleable Iron
• Cover Included: Yes
• Cover Opening Dia.: 4.88"
• Cover Type: Externally Threaded
• Enclosure: Class I Group B C D, Class II Group E F G, Class Iii
• Family Series: Appleton Electrical Boxes Series, GR Series
• Hub Location: (4) Side
• Hub Size: 1 1/2", 2" , 2"
• Hub Type: External
• Material: Zinc Electro Plated Dichromate Epoxy Powder Coated Malleable Iron , Zinc Electroplated DichromAte Epoxy Powder Coated mAlleable Iron
• No. Of Hubs: 4
• O-ring Included: Yes
• Product Series: Gr
• Shape: Round , X
• Style: GRX
