Overview

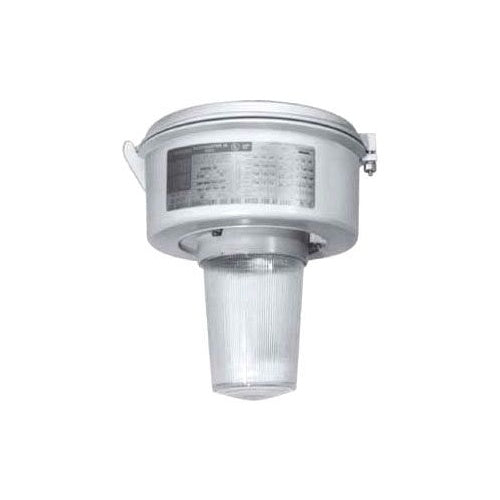

KPAL1575MT Appleton Light Fixtures, Mercmaster III HID 50-250 Series, MERCMASTER III ENCLOSED AND GA

Product Specifications

• Catalog Number: KPAL1575MT
• Manufacturer: Appleton
• Product Series: Mercmaster III HID 50-250
• Family Series: Appleton Light Fixtures, Mercmaster III HID 50-250 Series
• Full Technical Description: Appleton Mercmaster III 250 KP Series HID Luminaire Without Guard, Fixture Type: Pendant Rigid Mounting, Lamp Type: 150 WTT 16000 LM Mogul High Pressure Sodium, Lamp Wattage: 150 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material:
• Lamp Included: No
• Ballast Type: Integrated
• Voltage: 120-277 VAC
• Style: Globe
• Material: Aluminum
• Lamp Type: High Pressure Sodium
• Power: 150 W
• Hub Size: 3/4 "
• Mounting: Pendant
• Lamp Base: Mogul
• Guarded: No
• Junction Box: No
• Protection Rating: IP66
• Enclosed: Yes
• Gasket Included: Yes
• Marine Rated: Yes
• Wet Locations: Yes
• NEMA Rating: NEMA 4X
• Nominal Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Approvals: CSA, cULus
• Net Weight: 0 lbs
• Gross Weight: 23.05 lbs
