Overview

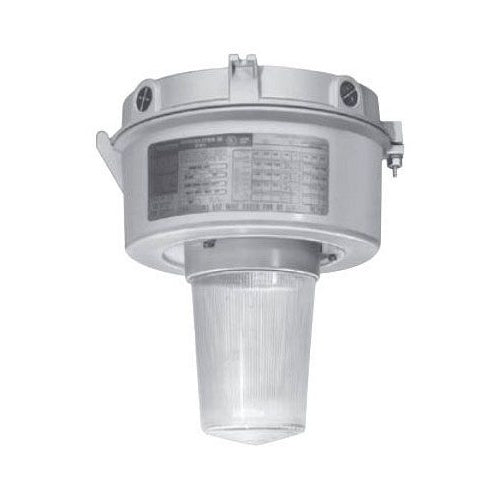

KPCL1075MT Appleton Light Fixtures, Mercmaster III HID 50-250 Series, MERCMASTER III ENCLOSED AND GA

Product Specifications

• Catalog Number: KPCL1075MT
• Manufacturer: Appleton
• Product Series: Mercmaster III HID 50-250
• Family Series: Appleton Light Fixtures, Mercmaster III HID 50-250 Series
• Full Technical Description: HID Hazardous Location Light Fixture with Globe, Lamp Type High Pressure Sodium, Lamp Wattage 100 W, Ballast/Line Voltage 120/208/240/277 VAC at 60 Hz, Number of Hubs 5, Number of Plugs 4, Hub Size 3/4 Inch Threaded, Housing Material Die-Cast Copper-Free
• Lamp Included: No
• Ballast Type: Integrated
• Voltage: 120-277 VAC
• Style: Globe
• Material: Aluminum
• Lamp Type: High Pressure Sodium
• Power: 100 W
• Hub Size: 3/4 "
• Mounting: Ceiling
• Lamp Base: Mogul
• Guarded: No
• Junction Box: No
• Protection Rating: IP66
• Enclosed: Yes
• Gasket Included: Yes
• Marine Rated: Yes
• Wet Locations: Yes
• NEMA Rating: NEMA 4X
• Nominal Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Approvals: CSA, cULus
• Net Weight: 0 lbs
• Gross Weight: 22.75 lbs
