Overview

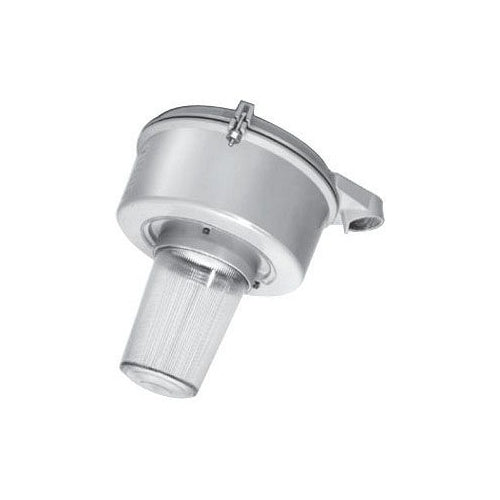

APPLETON ELECTRIC KPSL10125J548 Hazardous Lighting Fixture

Product Specifications

• Full Technical Description: Hazardous Lighting Fixture | BK2CEW
• Catalog Number: KPSL10125J548
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Ballast Line Voltage: 480V
• Ballast Type: High Reactance, HPF
• Constructional Feature: Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Weather Proof
• Enclosure: NEMA 4X, Class I Division 2 Group A Group B Group C Group D, Class II Division 1 Division 2 Group E Group F Group G, Class III
• Housing Finish: Baked Epoxy Powder Coated
• Housing Material: Die Cast Copper Free Aluminum
• Hub Size: 1 1/4"
• Lamp Type: Mogul Base High Pressure Sodium
• Lamp Watts: 100 W
• Mounting: 25°C Stanchion
• No. Of Hubs: 1
• Refractor Material: Heat Resistant Prismatic Glass
• Refractor Size: 8"
• Refractor Type: NEMA Type 5
