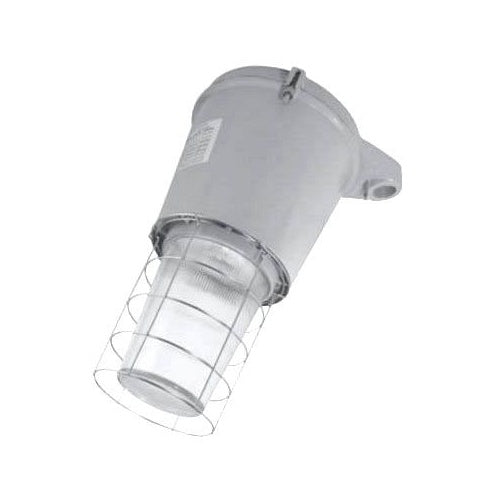

APPLETON ELECTRIC KPSL70125G48 High Pressure Sodium Light Fixture, 70W

Product Specifications

• Full Technical Description: High Pressure Sodium Light Fixture, 70W | BK2DAL
• Catalog Number: KPSL70125G48
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Application: Hazardous Location
• Ballast Line Voltage: 480V , 480V at 60 HZ
• Ballast Type: HPF
• Enclosure: NEMA 4X, CLASS I Div 2 Group A B C D, CLASS II Div 1 And 2 Group E F G, CLASS III , NEMA 4X, Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III
• Globe Material: Heat Resistant Prismatic Glass
• Guard Finish: Baked Epoxy
• Guard Material: Die Cast Copper Free Aluminum
• Housing Finish: Epoxy Powder Coated
• Housing Material: Die Cast Copper Free Aluminum
• Hub Size: 1 1/4" , 1 1/4" NPT
• Hub Type: NPT
• Lamp Type: Mogul Base High Pressure Sodium
• Lamp Watts: 70 W
• Mounting: 25° Stanchion
• No. Of Hub: 1
• No. Of Hubs: 1
