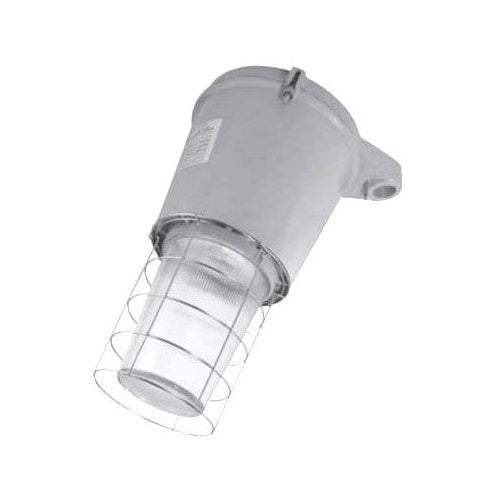

KPSL70150G48 Appleton Light Fixtures, Mercmaster III HID 50-250 Series, MERCMASTER III ENCLOSED AND GA

Product Specifications

• Catalog Number: KPSL70150G48
• Manufacturer: Appleton
• Product Series: Mercmaster III HID 50-250
• Family Series: Appleton Light Fixtures, Mercmaster III HID 50-250 Series
• Full Technical Description: Appleton Mercmaster III 250 KP Series HID Luminaire With Guard, Fixture Type: 25 DEG Stanchion, Lamp Type: 70 WTT 6400 LM Mogul High Pressure Sodium, Lamp Wattage: 70 WTT, Voltage Rating: 480 V, Number Of Lamps: 1, Material: Copperfree Cast Aluminum Less
• Lamp Included: No
• Ballast Type: Integrated
• Voltage: 480 VAC
• Style: Globe
• Material: Aluminum
• Lamp Type: High Pressure Sodium
• Power: 70 W
• Hub Size: 1-1/2 "
• Mounting: Stanchion 25 Degrees
• Lamp Base: Mogul
• Guarded: Yes
• Junction Box: No
• Protection Rating: IP66
• Enclosed: Yes
• Gasket Included: Yes
• Marine Rated: Yes
• Wet Locations: Yes
• NEMA Rating: NEMA 4X
• Nominal Voltage: 480 VAC
• Approvals: CSA, cULus
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
