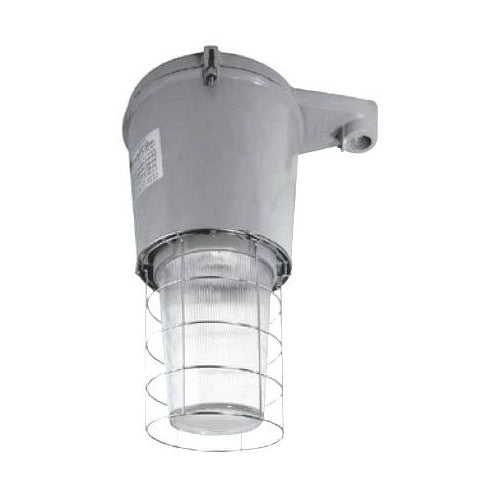

APPLETON ELECTRIC KPSTP17125G48 Metal Halide Light Fixture, 175W

Product Specifications

• Full Technical Description: Metal Halide Light Fixture, 175W | BK2EME
• Catalog Number: KPSTP17125G48
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Ballast Line Voltage: 480V
• Ballast Type: Constant Wattage, Pulse Start
• Enclosure: NEMA 4X, CLASS I Div 2 Group A B C D, CLASS II Div 1 And 2 Group E F G, CLASS III , NEMA 4X, Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III
• Globe Material: Heat Resistant Prismatic Glass
• Guard Finish: Baked Epoxy Powder Coated
• Guard Material: Die Cast Copper Free Aluminum
• Housing Finish: Baked Epoxy Powder Coated
• Housing Material: Copper Free Cast Aluminum
• Hub Size: 1 1/4" , 1 1/4" NPT
• Hub Type: NPT
• Lamp Type: Mogul Base Metal Halide
• Lamp Watts: 175 W
• Mounting: Straight Stanchion
• No. Of Hub: 1
• No. Of Hubs: 1
