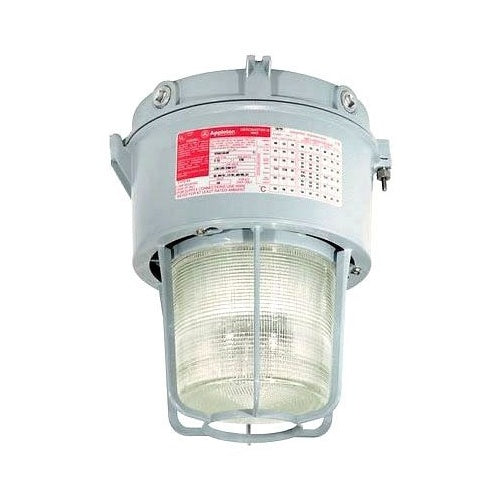

APPLETON ELECTRIC KPSTP17125J3GMT Metal Halide Light Fixture, 175W

Product Specifications

• Full Technical Description: Metal Halide Light Fixture, 175W | BK2ENF
• Catalog Number: KPSTP17125J3GMT
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Application: Chemical Processing, Foundry, Manufacturing Plant, Marine Location, Non Hazardous Location, Oil Refinery, Pulp/Paper Mill, Storage Area, Wet Location
• Ballast Line Voltage: 120/208/240/277V
• Ballast Type: Constant Wattage, Multi Tap, Pulse Start
• Enclosure: Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III, NEMA 4X
• Guard Finish: Electrostatically Applied Baked Epoxy Powder Coated
• Guard Material: Die Cast Copper Free Aluminum
• Housing Finish: Electrostatically Applied Epoxy Powder Coated
• Housing Material: Cast Copper Free Aluminum
• Hub Size: 1 1/4"
• Lamp Type: Mogul Base Metal Halide
• Lamp Watts: 175 W
• Mounting: Straight Stanchion
• No. Of Hubs: 1
• Refractor Material: Heat Resistant Prismatic Glass
• Refractor Size: 8"
• Refractor Type: NEMA Type 3
• System Of Measurement: Imperial
