Overview

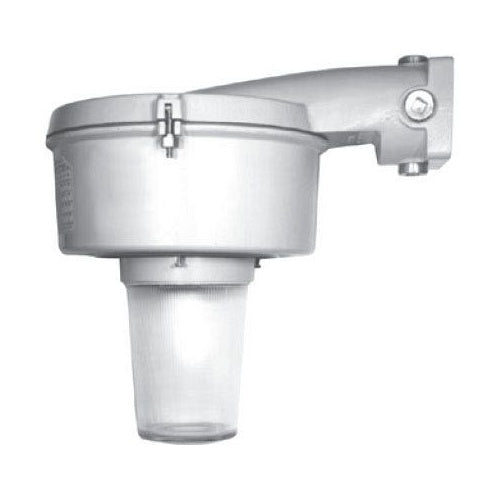

APPLETON ELECTRIC KPWBP1710J148 Metal Halide Light Fixture, 175W, 1 Inch Npt Hub Size

Product Specifications

• Full Technical Description: Metal Halide Light Fixture, 175W, 1 Inch Npt Hub Size | BK2GJJ
• Catalog Number: KPWBP1710J148
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Ballast Line Voltage: 480V
• Ballast Type: Constant Wattage, Pulse Start
• Enclosure: NEMA 4X, Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III
• Housing Finish: Baked Epoxy Powder Coated
• Housing Material: Copper Free Cast Aluminum
• Hub Size: 1"
• Lamp Type: Mogul Base Metal Halide
• Lamp Watts: 175 W
• Mounting: Wall
• No. Of Hubs: 5
• No. Of Plugs: 4
• Refractor Material: Heat Resistant Prismatic Glass
• Refractor Size: 8"
• Refractor Type: NEMA Type 1
