Overview

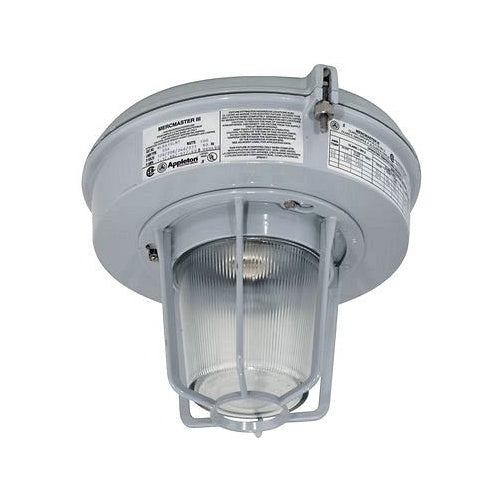

MLAL152G1GMT Appleton Light Fixtures, Mercmaster III LP Series, MERCMASTER III LOW PROFILE ENC

Product Specifications

• Catalog Number: MLAL152G1GMT
• Manufacturer: Appleton
• Product Series: Mercmaster III LP
• Family Series: Appleton Light Fixtures, Mercmaster III LP Series
• Full Technical Description: Appleton Mercmaster III ML Series Low Profile HID Luminaire With Cast Guard, Fixture Type: Pendant Rigid Mounting, Lamp Type: 150 WTT S55 16000 LM Medium High Pressure Sodium, Lamp Wattage: 150 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1
• Ballast Type: Integrated
• Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Style: Globe
• Material: Aluminum
• Lamp Type: High Pressure Sodium
• Power: 150 W
• Hub Size: 3/4 "
• Mounting: Rigid Pendant
• Lamp Base: Medium
• Guarded: Yes
• Junction Box: No
• Protection Rating: IP66
• Enclosed: Yes
• Gasket Included: Yes
• Marine Rated: Yes
• Wet Locations: Yes
• NEMA Rating: NEMA 4X
• Nominal Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Approvals: CSA, cULus
• Net Weight: 0 lbs
• Gross Weight: 21.2 lbs
