Product information
Overview

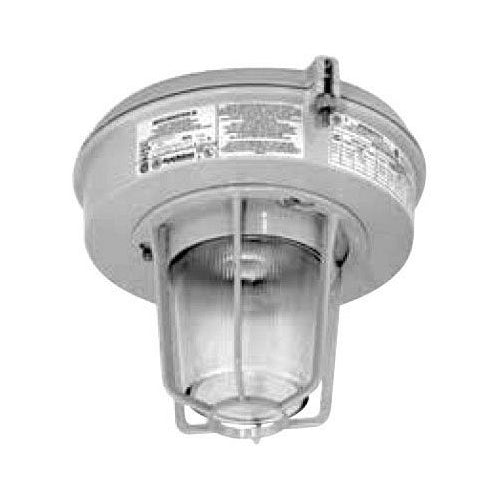

APPLETON ELECTRIC MLAL703J1G48 High Pressure Sodium Light Fixture, 70W, 1 Inch Npt Hub Size
Product Specifications
- Full Technical Description: High Pressure Sodium Light Fixture, 70W, 1 Inch Npt Hub Size | BK2KFZ
- Catalog Number: MLAL703J1G48
- Manufacturer: APPLETON ELECTRIC
- Height: 24.13 cm
- Length: 35.56 cm
- Width: 29.21 cm
- Country Of Origin: US
- Weight: 0.4815 kg
- Application: Hazardous Location, Marine Location, Wet Location
- Ballast Line Voltage: 480V
- Ballast Type: HX-HPF
- Enclosure: Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III, NEMA 4X, CSA 4X
- Guard Finish: Electrostatically Applied Baked Gray Epoxy Clad
- Guard Material: Die Cast Copper Free Aluminum
- Housing Finish: Electrostatically Applied Baked Gray Epoxy Clad
- Housing Material: Die Cast Copper Free Aluminum
- Hub Size: 1"
- Lamp Type: Medium Base High Pressure Sodium
- Lamp Watts: 70 W
- Mounting: Rigid Pendant
- No. Of Hubs: 1
- Refractor Material: Heat Resistant Prismatic Glass
- Refractor Size: 8"
- Refractor Type: NEMA Type 1
- System Of Measurement: Imperial
