Overview

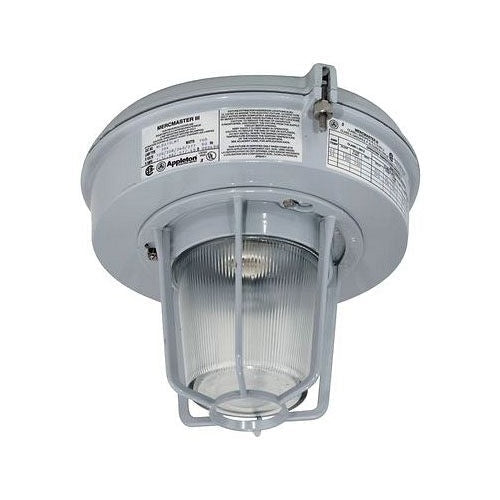

APPLETON ELECTRIC MLFL703G1G48 High Pressure Sodium Light Fixture, 70W, 1 Inch Npt Hub Size

Product Specifications

• Full Technical Description: High Pressure Sodium Light Fixture, 70W, 1 Inch Npt Hub Size | BK2NTK
• Catalog Number: MLFL703G1G48
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Application: Hazardous/Wet Location
• Ballast Line Voltage: 480V
• Ballast Type: HPF
• Enclosure: NEMA 4X, Class I Division 2 Group A B C D, Class II Division 1 And 2 Group E F G, Class III
• Globe Material: Heat Resistant Prismatic Glass
• Guard Finish: Baked Gray Epoxy Clad
• Guard Material: Die Cast Copper Free Aluminum
• Housing Finish: Baked Gray Epoxy Clad
• Housing Material: Die Cast Copper Free Aluminum
• Hub Size: 1"
• Lamp Type: Medium Base High Pressure Sodium
• Lamp Watts: 70 W
• Mounting: Pendant, Flexible Style
• No. Of Hubs: 1
