Overview

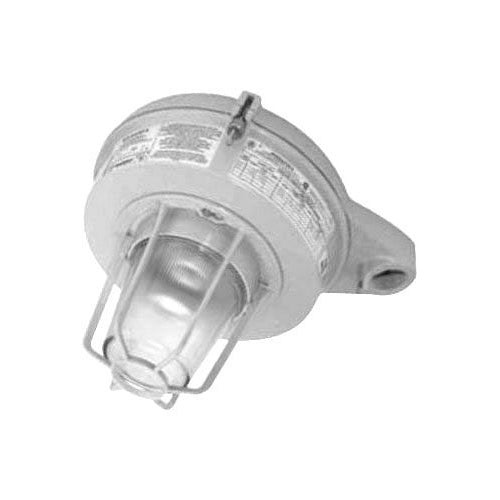

MLSL705G1GMT Appleton Light Fixtures, Mercmaster III LP Series, MERCMASTER III LOW PROFILE ENC

Product Specifications

• Full Technical Description: Light Fixtures, Mercmaster III LP Series MERCMASTER III LOW PROFILE ENC Mercmaster III LP Series Information The Mercmaster III Low Profile Luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
• Catalog Number: MLSL705G1GMT
• Manufacturer: Appleton
• Product Series: Mercmaster III LP
• Family Series: Appleton Light Fixtures, Mercmaster III LP Series
• Ballast Type: Integrated
• Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Style: Globe
• Material: Aluminum
• Lamp Type: High Pressure Sodium
• Power: 70 W
• Hub Size: 1-1/2 "
• Mounting: Stanchion 25 Degrees
• Lamp Base: Medium
• Guarded: Yes
• Junction Box: No
• Protection Rating: IP66
• Enclosed: Yes
• Gasket Included: Yes
• Marine Rated: Yes
• Wet Locations: Yes
• NEMA Rating: NEMA 4X
• Nominal Voltage: 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Approvals: CSA, cULus
• Net Weight: 0 lbs
• Gross Weight: 20.3 lbs
