Overview

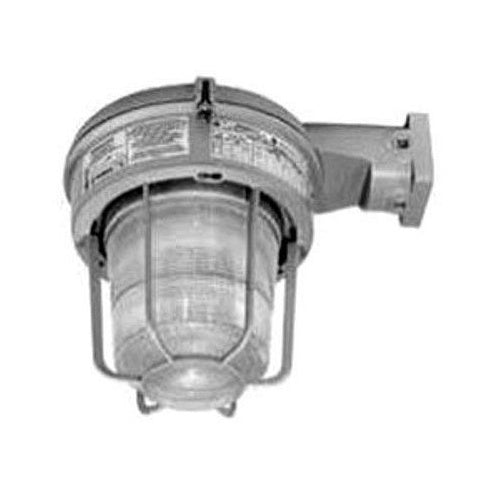

Appleton MLWF262G2GBU Mercmaster III 26W 120-277VAC Wall-Mount Compact Fluorescent Luminaire With Guard

Product Specifications

• Catalog Number: MLWF262G2GBU
• UPC: 781381878517
• Full Technical Description: product type: low-profile hazardous-location compact fluorescent luminaire; product family: Mercmaster III ML Series; mounting style: wall mount; lamp type: 26 W PL-T compact fluorescent; number of lamps: 1; lamp included: no; fixture wattage: approximately 28 W; lamp output: approximately 1800 lumens; lamp life: approximately 10,000 hours; voltage rating: 120-277 VAC and 125 VDC; frequency rating: 50/60 Hz; ballast type: electronic; starting current: approximately 0.25 A at 120 V; operating current: approximately 0.11 A at 277 V; housing material: die-cast copper-free aluminum; housing finish: epoxy powder coat; guard material: die-cast copper-free aluminum; lens: heat-resistant prismatic glass globe with engineered thermoplastic optical components; number of hubs: 5; hub size: 3/4-inch NPT; dimensions: approximately 17 inches long x 17 inches wide; ambient-temperature rating: 40 degrees C; minimum starting temperature: -18 degrees C; supply-wire temperature rating: 75 degrees C; enclosure ratings: NEMA 4X and IP66; hazardous-location suitability: Class I, Division 2, Groups A, B, C, and D; Class I, Zone 2; Class II, Divisions 1 and 2, Groups E, F, and G; Class III; suitable for marine and wet locations
• Manufacturer: Emerson
• Manufacturer Brand: Appleton Mercmaster III
