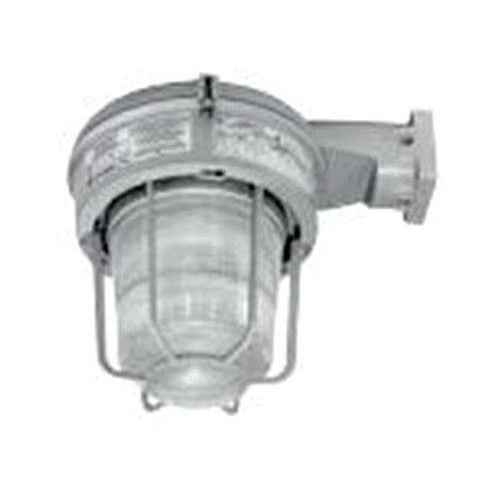

APPLETON ELECTRIC MLWL152J1NMT High Pressure Sodium Light Fixture, 150W

Product Specifications

• Full Technical Description: High Pressure Sodium Light Fixture, 150W | BK2TNX
• Catalog Number: MLWL152J1NMT
• Manufacturer: APPLETON ELECTRIC
• Height: 24.13 cm
• Length: 35.56 cm
• Width: 29.21 cm
• Country Of Origin: US
• Weight: 0.4815 kg
• Application: Hazardous/Wet Location
• Ballast Line Voltage: 120/208/240/277V
• Ballast Type: Multi Tap, HPF
• Constructional Feature: Corrosion Resistant, Dirt Tight, Dust Tight, Moisture Resistant, Water Tight, Weather Proof
• Enclosure: NEMA 4X, Class I Division 2 Group A Group B Group C Group D, Class II Division 1 Division 2 Group E Group F Group G, Class III
• Housing Finish: Baked Gray Epoxy Claded
• Housing Material: Die Cast Copper Free Aluminum
• Hub Size: 1 1/2"
• Lamp Type: Medium Base S55 High Pressure Sodium
• Lamp Watts: 150 W
• Mounting: Wall
• No. Of Hubs: 5
• No. Of Plugs: 4
• Refractor Material: Heat Resistant Prismatic Glass
• Refractor Size: 8"
• Refractor Type: NEMA Type 1
