Overview

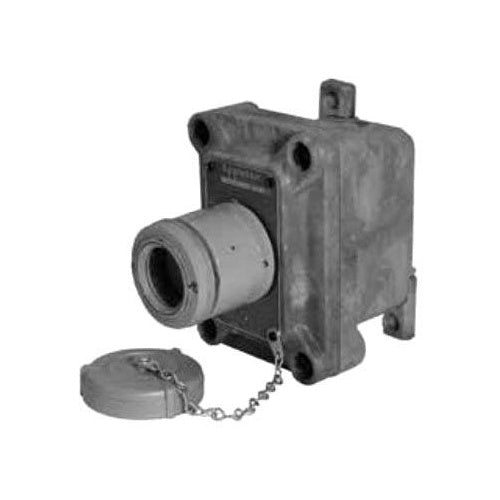

N1D752023 Appleton Plugs & Receptacles, N1/N2 Series, DIV 1 20A 125V RECEPT STATION

Product Specifications

• Catalog Number: N1D75-2023
• Manufacturer: Appleton
• Product Series: N1/N2
• Family Series: Appleton Plugs & Receptacles, N1/N2 Series
• Full Technical Description: Appleton U-Line N1 Series Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Aluminum Receptacle, High Strength Thermoplastic Polyetherimide Mounting Box, Color: Natural
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 2
• Voltage: 125 VAC
• Body Type: Dead-End
• Connection Type: Receptacle
• GFCI: No
• NEMA Configuration: 5-20R
• Color: Gray
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: UL
• Comments: Explosion Proof
• Net Weight: 0 lbs
• Gross Weight: 3.97 lbs
