Product information
Overview

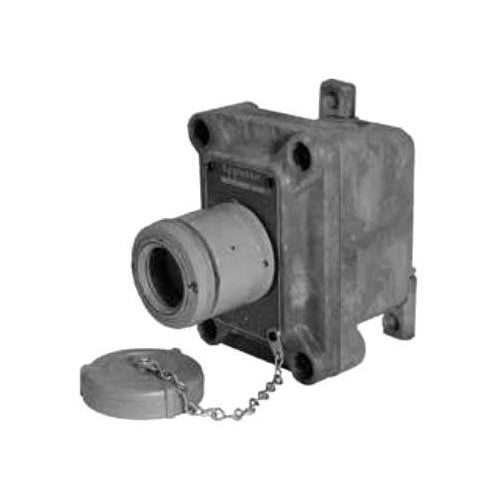

N1DC7520232 Appleton Plugs & Receptacles, N1/N2 Series, DIV 1 20A 250V RECEPT STATION
Product Specifications
- Catalog Number: N1DC75-20232
- Manufacturer: Appleton
- Product Series: N1/N2
- Family Series: Appleton Plugs & Receptacles, N1/N2 Series
- Full Technical Description: Pin and Sleeve Receptacle Assembly, Type Feed Through, Voltage Rating 250 VAC, Current Rating 20 Ampere, Power Rating 2 HP, Number of Poles 3, Number of Wires 2, Hub Size 1/2 Inch or 3/4 Inch, Enclosure Class I Div 1 and Div 2 Group C D, NEMA
- Current Rating: 20 A
- Number of Poles: 3
- Number of Wires: 2
- Voltage: 250 VAC
- Body Type: Feed-Thru
- Connection Type: Receptacle
- GFCI: No
- NEMA Configuration: 6-20R
- Color: Gray
- Watertight: No
- Isolated Ground: No
- Illuminated: No
- Approvals: UL
- Comments: Explosion Proof
- Net Weight: 0 lbs
- Gross Weight: 0 lbs
