Overview

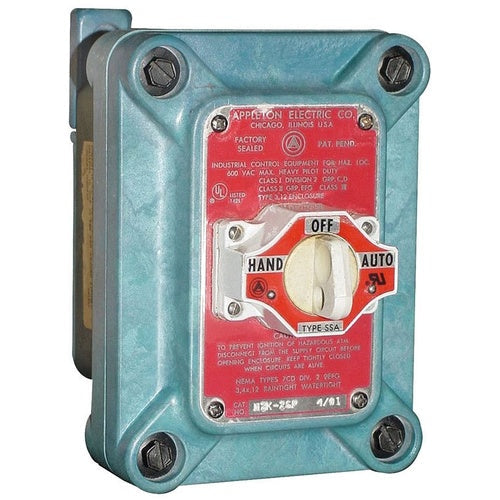

APPLETON ELECTRIC N2DC7512 Selector Switch Station

Product Specifications

• Full Technical Description: Selector Switch Station | BK2UGX
• Catalog Number: N2DC7512
• Manufacturer: APPLETON ELECTRIC
• Height: 7.62 cm
• Length: 12.7 cm
• Width: 7.62 cm
• Country Of Origin: US
• Weight: 0.045 kg
• Amps: 10A
• Box Type: Single Gang
• Constructional Feature: Dust Ignition Proof, Explosion Proof, Rain Tight, Water Tight
• Contact Configuration: 2No, 2NC
• Enclosure: Class I Division 2 Group B C D, Class II Division 1 And 2 Group E F G, Class III Division 1 And 2, NEMA 3/4X/7B/7C/7D/9E/9F/9G
• Enclosure Material: Glass Reinforced Thermoplastic Polyester
• Hub Size: 1/2", 3/4"
• No. Of Circuits: 2
• No. Of Positions: 2
• Operator Type: Knob
• Type: Feed Through
• Voltage: 600V AC
