Appleton st150f

Overview

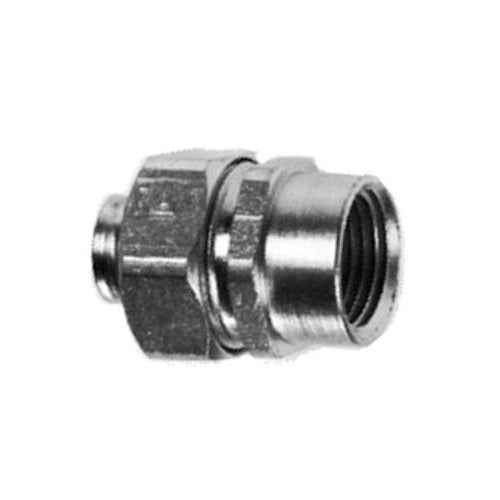

ST-150F Liquid Tight Oiltight Raintight Conduit Connector With Threaded Hub, 1-1/2 in Trade, Straight, Malleable Iron, Triple Coated

Product Specifications

• Catalog Number: ST150F
• UPC / GTIN: 781381463324
• Manufacturer Brand: Appleton®
• UNSPSC: 39121420
• Features: Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull out requirements; Provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground; Suitable for wet locations; Full, machined tapered threads (NPT); Compact design with small turning radius; Aluminum ferrule; Chromate/epoxy powder coated/zinc electroplated finish
• Angle: Straight
• Country of Origin: Mexico
• Dimensions: 2.5 in L x 2.63 in H
• Finish: Triple Coated
• Material: Malleable Iron
• Series: ST Series
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Trade Size: 1-1/2 in
• Type: Liquid Tight Oiltight Raintight
