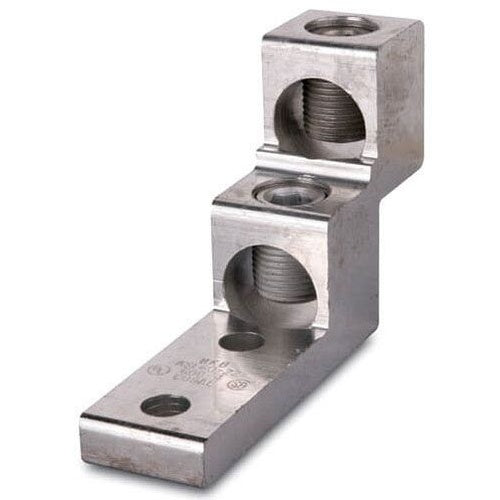

Blackburn ASL75-22 Aluminum 2Cndtr 2-Hole Mount 1/0Str-750

Overview

Blackburn ASL75-22 Aluminum 2Cndtr 2-Hole Mount 1/0Str-750

Product Specifications

• UPC: 78378613318
• Screw Type: ALLEN
• Material: TIN PLATED ALUMINUM
• Number Of Pad Holes: 2
• Pad Size: 2-11/32 INCH L X 1-1/2 INCH W X 3/8 INCH THK
• Stud Size: 13/32 INCH
• Overall Length: 4-29/32 INCH
• Approval: UL 486B, CSA
• Catalog Number: ASL75-22
• Brand Name: ASL-ALCUL
• Type: DUAL RATED
• Number Of Conductors: 2
• Minimum Conductor Size: 3/0 AWG STRANDED
• Maximum Conductor Size: 750 KCMIL
• Conductor Material: ALUMINUM/COPPER
• Pad Type: STRAIGHT
• Catalog Description: TYPE ASL-ALCUL TWO-CONDUCTOR, TWO-HOLE MOUNT FOR CONDUCTOR RANGE MAX 750 KCMIL, MIN 1/0 STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 4-29/32 Inch Overall Length; 3/0 AWG Stranded min. Conductor Size; 750 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 2 Conductor(S); 13/32 Inch Stud Size; 2-11/32 Inch L X 1-1/2 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; Allen Screw Type; Asl-ALCUL[TM] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786133185
• SKU Name: asl7522 blackburn

Resources

• Manufacturer Spec Sheet
