Overview

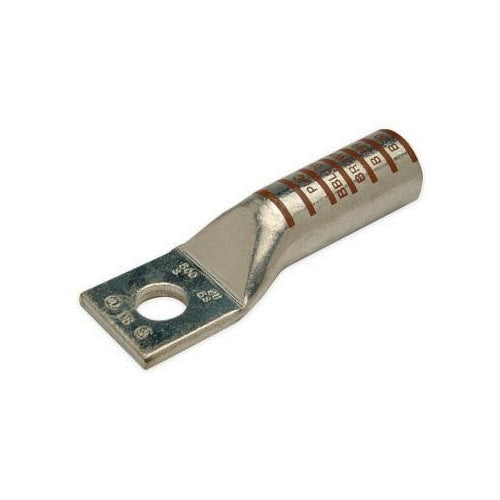

Penn-Union BBLU-2/0S 1-Hole Copper Crimp Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Black Color; 2.72 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2/0 AWG Conductor Size; 3/8 Inch Stud Size; 13 Die Index; 0.87 Inch Length X 0.81 Inch Width X 0.13 Inch Thickness Pad Size; 1 Pad Hole(S); Long Barrel Type; PENN-CRIMPS[R] Brand; RoHS Compliant; Wire Strip Length 1-5/8 Inch; With Closed Transition
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037215954
• SKU Name: bblu2/0s pennunion

Resources

• Manufacturer Spec Sheet
