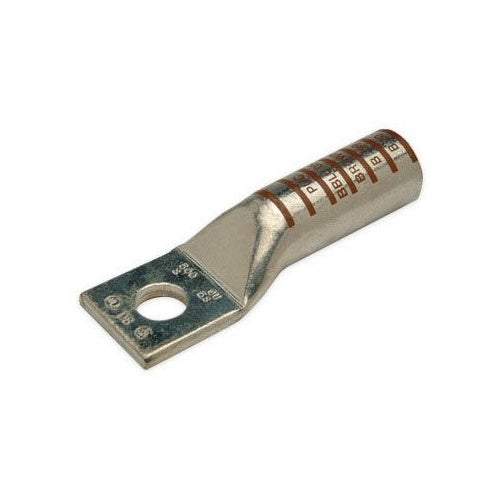

Penn-Union BBLU-4/0S 1-Hole Copper Crimp Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Purple Color; 3.31 Inch Overall Length; 1.63 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 4/0 AWG Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 1.25 Inch Length X 1 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Long Barrel Type; PENN-CRIMPS[R] Brand; RoHS Compliant; Wire Strip Length 1-3/4 Inch; With Closed Transition
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037216135
• SKU Name: bblu4/0s pennunion

Resources

• Manufacturer Spec Sheet
