Overview

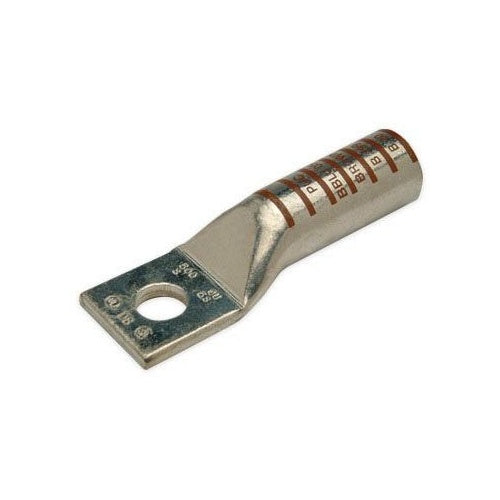

Penn-Union BBLU-4S 1-Hole Copper Crimp Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Gray Color; 2.06 Inch Overall Length; 1.09 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 4 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 8 (Burndy), T-8 (Penn-Union) Die Index; 0.69 Inch L X 0.48 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long Barrel Type; RoHS Compliant; Wire Strip Length 1-1/4 Inch
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037216197
• SKU Name: bblu4s pennunion

Resources

• Manufacturer Spec Sheet
