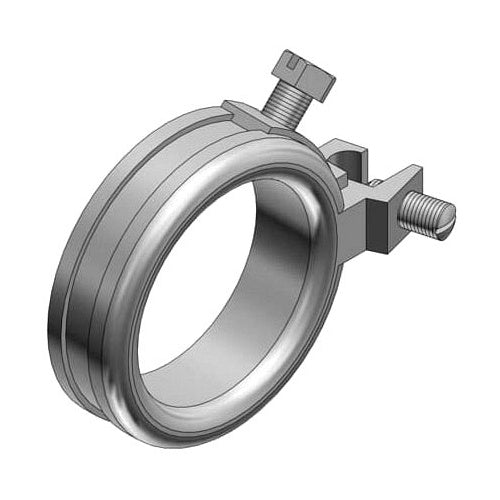

T&B BG300-6-40 3" Ground Bushing For 6-4/0 Range

Overview

T&B BG300-6-40 3" Ground Bushing For 6-4/0 Range

Product Specifications

• UPC: 78621016274
• Diameter: 4.042 Inch
• Height: 1.524 Inch
• Material: Zinc Plated Malleable Iron Body, Brass Mounting Screw
• Standard Package: 5
• Approval: UL, CSA
• Used On: Threaded/Threadless Rigid Conduit/IMC
• Catalog Number: BG300-6-40
• Brand Name: Blackjack[R]
• Type: Threadless
• Trade Size: 3 Inch
• Wire Size: 6 to 4/0 AWG
• Lug Type: Stainless Steel Screw
• Conductor Material: Copper/Aluminum
• Throat Type: Nylon Insulated
• Catalog Description: 3 INCH BLACKJACK GROUNDING BUSHING, MALLEABLE IRON ZINC PLATED, WIRE RANGE 6 TO 4/0 FOR USE WITH THREADED OR THREADLESS RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threadless Type; Zinc Plated Malleable Iron Body, Brass Mounting Screw Material; 1.524 Inch; Threaded/Threadless Rigid Conduit/Imc Used on; 6 to 4/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL, CSA Approval; 4.042 Inch Diameter; 5 Standard Package; 3 Inch Trade Size; Nylon Insulated Throat Type; Stainless Steel Screw Lug Type; BLACKJACK[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210162744
• SKU Name: bg300640 t & b
