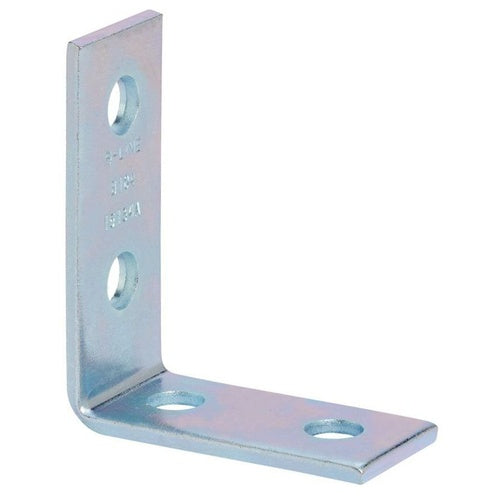

B-Line B104ZN 4-Hole Corner Angle, Zinc Plated

Overview

B-Line B104ZN 4-Hole Corner Angle, Zinc Plated

Product Specifications

• UPC: 78101150043
• Thickness: 7/32 Inch
• Channel Width: 1-5/8 Inch
• Material: ASTM B633/A653 Steel
• Process: Hot Rolled, Pickled and Oiled
• Finish: Zinc Electroplated
• Weight: 78 Pound per Carton
• Additional Information: Hole Spacing Size 1-7/8 Inch (On-Center), 13/16 Inch (From End); Excludes Nut and Bolt
• Catalog Number: B104ZN
• Brand Name: Cooper B-Line
• Model: B104
• Type: Plates
• Number Of Sides: 2
• Number Of Holes: 4
• Hole/Slot Size: 9/16 Inch Diameter
• Size: 3-1/2 Inch Length x 1-5/8 Inch Width x 4-1/8 Inch Height
• Catalog Description: EATON B-LINE SERIES CORNER ANGLE, 4.12" H X 4.12" L X 1.62" W, STEEL, ELECTRO-PLATED, FOUR HOLE CORNER ANGLE, 90 DEG
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; Carbon Steel Material; 3-1/2 Inch Length X 4-1/8 Inch Height Size; Zinc Electroplated Finish; 1-5/8 Inch Channel Width; 7/32 Inch Thickness; Hot Rolled Pickled and Oiled Process; 0.736 Pound Weight; 4 Hole(S); 9/16 Inch Diameter (Hole) Hole/Slot Size; 2 Side(S); Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); B104 Model
• Made In Usa: Yes
• Manufacturer: EATON B-LINE SYSTEMS INC
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut 90 Deg Angle Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011500436
• SKU Name: bline b104pltd
