Product information
Overview

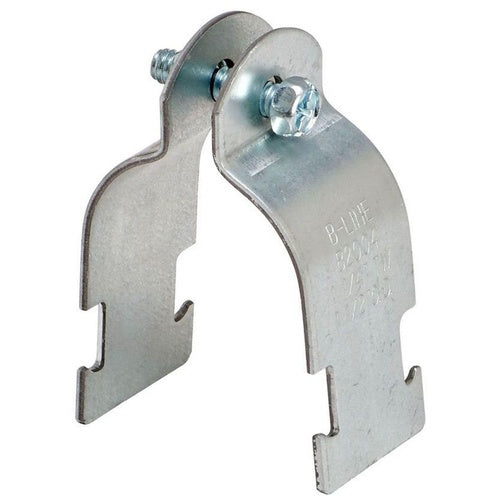

B-Line B2012ZN 1-1/2" Pipe/Conduit Clamp, Rigid, 1-1/2", Zinc Plated
Product Specifications
- UPC: 78101161053
- Load Rating: 800 Pound (Vertical), 125 Pound (Longitudinal/Transverse)
- Additional Information: Hardware Size 5/16 Inch-18 TPI; Safety Factor 5; Includes Combination Recess Hex Head Machine Screw and Square Nut
- Catalog Number: B2012ZN
- Model: B2000
- Type: Pipe/Rigid Conduit to Strut
- Construction: 2-Piece
- Material: ASTM A653 12 Gauge Low Carbon Steel
- Finish: ASTM B633/A653 SC3 Type III Electroplated Zinc
- Trade Size: 1-1/2 Inch
- Outer Diameter: 1-7/8 Inch
- Catalog Description: EATON B-LINE SERIES O.D. PIPE AND CONDUIT CLAMP, 0.0994" H X 3.78" L X 1.25" W, STEEL
- Category: Channel & Strut Fittings
- Full Technical Description: Pipe/Rigid Conduit to Strut Type; ASTM A653 12 Gauge Low Carbon Steel Material; ASTM B633/A653 SC3 Type III Electroplated Zinc Finish; 1-7/8 Inch Outer Diameter; 2-Piece Construction; 800 Pound (Vertical), 125 Pound (Longitudinal/Transverse) Load Rating; 1-1/2 Inch Trade Size; Hardware Size 5/16 Inch-18 TPI; Safety Factor 5; Includes Combination Recess Hex Head Machine Screw and Square Nut; B2000 Model
- Made In Usa: Yes
- Manufacturer: Eaton B-Line
- Manufacturer Brand: Eaton B-Line Systems Inc.
- Sub Category: Channel Conduit/Cable Clamp
- Unspsc: 39121311
- UPC 12 Digit: 781011610531
- SKU Name: bline b2012zn
