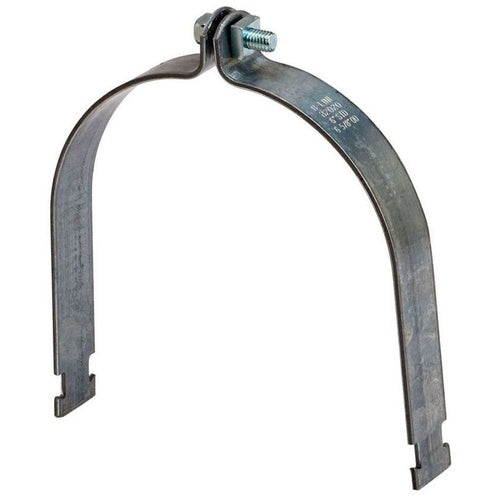

B-Line B2016PASS4 3-1/2" Pipe/Conduit ClAMP, Rigid, 3-1/2", Pre-Assembled, Stainless Steel

Overview

B-Line B2016PASS4 3-1/2" Pipe/Conduit Clamp, Rigid, 3-1/2", Pre-Assembled, Stainless Steel

Product Specifications

• UPC: 78101187201
• Additional Information: Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5; Hardware Size 5/16 Inch-8 TPI; Approval UL (Canada and US), UL 2239
• Catalog Number: B2016PASS4
• Model: B2000
• Type: EMT/IMC Rigid Conduit/Pipe to Strut, Pre-Assembled
• Material: 11 Gauge Grade 50 ASTM A1011HSLA Steel
• Finish: ASTM A240 304 Stainless Steel
• Trade Size: 3-1/2 Inch
• Outer Diameter: 4 Inch
• Load Rating: 1000 Pound
• Catalog Description: EATON B-LINE SERIES PRE-ASSEMBLED O.D. PIPE AND CONDUIT CLAMP, 0.1040" H X 6.1410" L X 1.25" W, STEEL, STAINLESS STEEL TYPE 304
• Category: Channel & Strut Fittings
• Full Technical Description: Emt/Imc Rigid Conduit/Pipe to Strut, Pre-Assembled Type; 11 Gauge Grade 50 ASTM A1011HSLA Steel Material; ASTM A240 304 Stainless Steel Finish; 4 Inch Outer Diameter; 1000 Pound Load Rating; 3-1/2 Inch Trade Size; Includes Combination Recess Hex Head Machine Screw and Square Nut; Safety Factor 5; Hardware Size 5/16 Inch-8 TPI; Approval UL (Canada and Us), UL 2239; B2000 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel Conduit/Cable Clamp
• Unspsc: 39121311
• UPC 12 Digit: 781011872014
• SKU Name: bline b2016pass4
