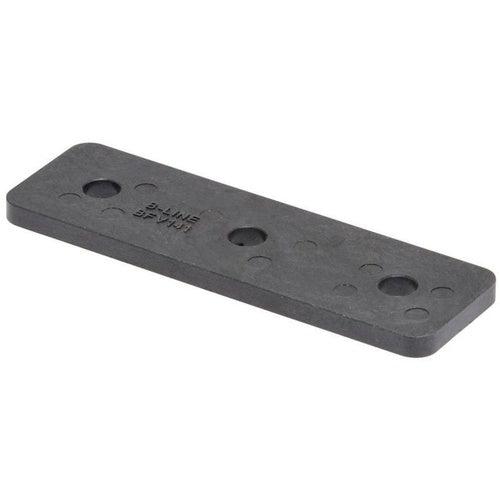

B-Line BFV141 3-Hole Flat Plate, Fiberglass

Overview

B-Line BFV141 3-Hole Flat Plate, Fiberglass

Product Specifications

• UPC: 78101101289
• Material: ASTM E84 CLASS I, ASTM D635 FIBERGLASS REINFORCED POLYURETHANE
• Process: INJECTION MOLDED
• Additional Information: 1-7/8 INCH HOLE SPACING ON CENTER, 13/16 INCH HOLE SPACING FROM END
• Catalog Number: BFV141
• Brand Name: B-Line.
• Number Of Holes: 3
• Hole/Slot Size: 13/32 INCH DIA
• Length: 5-3/8 INCH
• Width: 1-5/8 INCH
• Thickness: 1/4 INCH
• Channel Width: 1-5/8 INCH
• Catalog Description: EATON B-LINE SERIES CONNECTOR PLATE, 1.62" H X 5.37" L X 1.62" W, STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: ASTM E84 Class I, ASTM D635 Fiberglass Reinforced Polyurethane Material; 5-3/8 Inch; 1-5/8 Inch; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Injection Molded Process; 3 Hole(S); 13/32 Inch Dia Hole/Slot Size; B-Line. Brand; 1-7/8 Inch Hole Spacing on Center, 13/16 Inch Hole Spacing From End
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011012892
• SKU Name: bline bfv141
