Overview

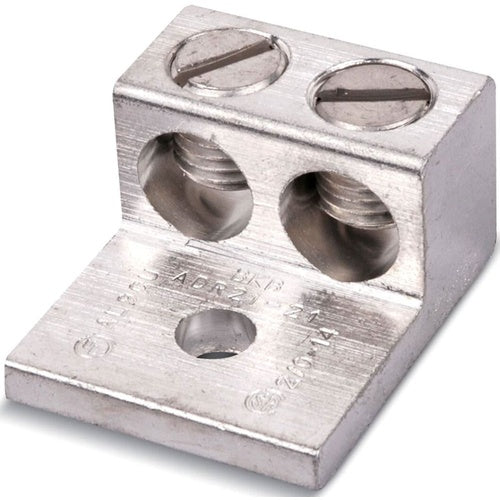

Blackburn ADR25-21 Lug 2/6-250

Product Specifications

• UPC: 78378661012
• Screw Type: Slot
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 1-9/16 Inch Length x 1-41/64 Inch Width x 1/4 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2-9/16 Inch
• Approval: UL 486B, CSA
• Additional Information: Height 1-3/16 Inch
• Catalog Number: ADR25-21
• Brand Name: Blackburn
• Type: Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 250 KCMIL
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL TWO-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE 6 STR-250 KCMIL, LENGTH 2-9/16 INCHES, WIDTH 1-41/64 INCHES, HEIGHT 1-3/16 INCHES, 3/8 INCH BOLT HOLE, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 2-9/16 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 250 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 2 Conductor(S); 3/8 Inch Stud Size; 1-9/16 Inch Length X 1-41/64 Inch Width X 1/4 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Adr-ALCUL[TM] Brand; Height 1-3/16 Inch
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610129
• SKU Name: blkbrn adr2521
