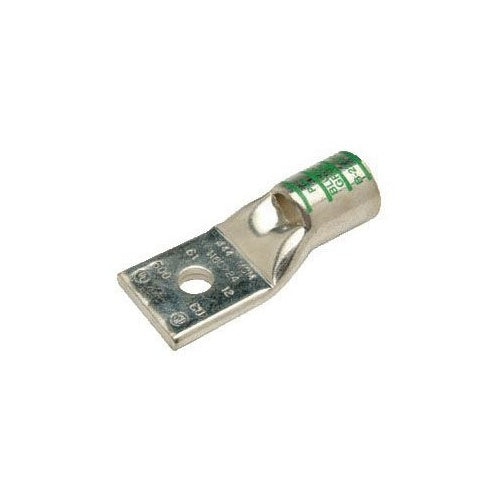

Penn-Union BLU-100S4 1000 1-Hole Crimp Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Tin Plated Copper Material; White Color; 4-7/8 Inch Overall Length; 1-7/8 Inch Barrel Length; Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 1000 MCM Conductor Size; 3/4 Inch Stud Size; 1-7/8 Inch L X 2-3/16 Inch W X 21/64 Inch Thk Pad Size; 1 Pad Hole(S); PENN-CRIMPS[R] Brand; With Inspection Window; BLU Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037234498
• SKU Name: blu100s4 pennunion

Resources

• Manufacturer Spec Sheet
