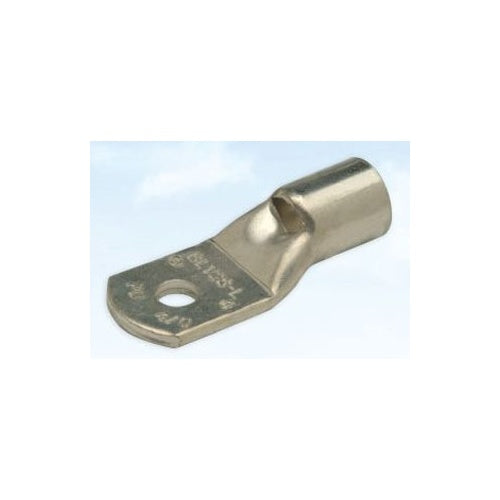

Penn-Union BLY28-L 4/0 Compression Terminal Lug

Product Specifications

• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Seamless Copper Material; 2.72 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 4/0 AWG, 4/0 (Aircraft), 4/0 (An) Conductor Size; 3/8 Inch Stud Size; 1.12 Inch W Pad Size; 1 Pad Hole(S); PENN-CRIMPS[R] Brand; Lug Type Ring Tongue; Wire Strip Length 7/8 Inch; With Inspection Window; BLY Model
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 785037906401
• SKU Name: bly28l pennunion

Resources

• Manufacturer Spec Sheet
