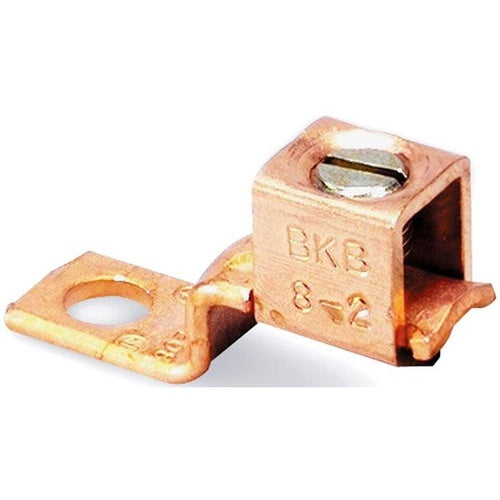

Blackburn BTC0208 8-2 Copper Screw Lug

Overview

Blackburn BTC0208 8-2 Copper Screw Lug

Product Specifications

• UPC: 78378661130
• Screw Type: Slot
• Material: Electrolytic Seamless Copper
• Number Of Pad Holes: 1
• Pad Size: 1/2 Inch Width x 3/32 Inch Thickness
• Stud Size: 17/64 Inch
• Overall Length: 1-15/32 Inch
• Approval: UL 486A, CSA
• Additional Information: Screw Material Zinc Plated Steel
• Catalog Number: BTC0208
• Brand Name: Blackburn
• Model: BTC
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG Stranded
• Maximum Conductor Size: 2 AWG Stranded
• Conductor Material: Copper
• Pad Type: Offset Tang
• Catalog Description: TYPE BTC - COPPER SINGLE-CONDUCTOR, ONE-HOLE MOUNT (OFFSET-TANG), CONDUCTOR RANGE 8 STR-2 STR, LENGTH 1-15/32, WIDTH 1/2 INCH, HEIGHT 27/32 INCH, 17/64 BOLT INCH HOLE
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Seamless Copper Material; 1-15/32 Inch Overall Length; 8 AWG Stranded min. Conductor Size; 2 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 486A, CSA Approval; 1 Conductor(S); 17/64 Inch Stud Size; 1/2 Inch Width X 3/32 Inch Thickness Pad Size; 1 Pad Hole(S); Offset Tang Pad Type; Slot Screw Type; Screw Material Zinc Plated Steel; BTC Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786611300
• SKU Name: btc0208 blackburn
