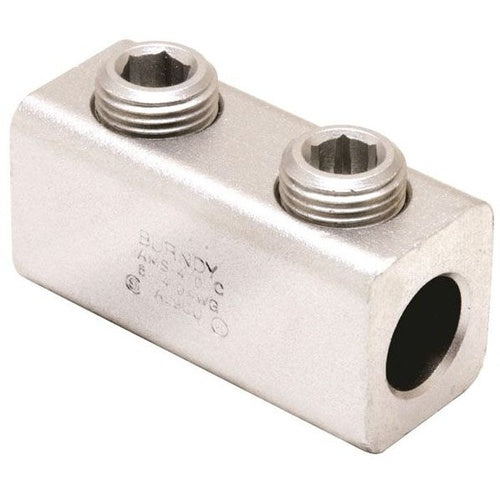

Burndy AMS-4/0 4/0-6 Dual Rated Splice

Overview

Burndy AMS-4/0 4/0-6 Dual Rated Splice

Product Specifications

• UPC: 78181024102
• Hex Size: 5/16 Inch
• Size: 2.31 Inch L x 1 Inch W x 1.09 Inch H
• Body Material: Tin Plated High Strength Aluminum
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Installation Torque 275 Lb-Inch
• Catalog Number: AMS4/0
• Model: Type AMS
• Type: In-Line with Barrier
• Minimum Conductor Size: 6 AWG (Aluminum), 6 AWG Solid/Stranded (Copper)
• Maximum Conductor Size: 4/0 AWG (Aluminum), 4/0 AWG Solid/Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Number Of Screws: 2
• Screw Size: 9/16 Inch Dia
• Catalog Description: MECHANICAL SPLICE FOR #6-4/0 AWG, DUAL RATED, 2 SCREWS. SOLID CENTER BARRIER PREVENTS CONTACT OF DISSIMILAR METALS.
• Category: Large Terminals & Connectors
• Full Technical Description: In-Line With Barrier Type; 2.31 Inch L X 1 Inch W X 1.09 Inch H Size; 6 AWG (Aluminum), 6 AWG Solid/Stranded (Copper) min. Conductor Size; 4/0 AWG (Aluminum), 4/0 AWG Solid/Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; Tin Plated High Strength Aluminum Body Material; Non-Insulated Insulation Type; 9/16 Inch Dia Screw Size; 2 Screw(S); 5/16 Inch Hex Size; RoHS Compliant; Installation Torque 275 lb-Inch; TYPE AMS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121458
• UPC 12 Digit: 781810241028
• SKU Name: bur ams4/0

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
