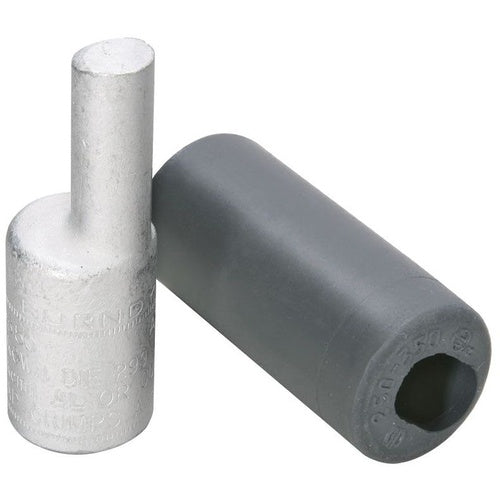

Burndy AYPO400 400 Termination Plug

Overview

Burndy AYPO400 400 Termination Plug

Product Specifications

• UPC: 78181073846
• Insulation Type: Rubber Insulated
• Pin Size: 0.63 Inch Diameter x 1.6 Inch Length
• Cover Size: 2.81 Inch Length
• Overall Length: 3.43 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; TEMPERATURE RATING 90 DEG C; COLOR PINK; DIE INDEX 300; WIRE STRIP LENGTH 1 1/8 INCH
• Catalog Number: AYPO400
• Brand Name: HYPLUG[TM]
• Model: AYPO
• Type: Offset
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Aluminum/Copper
• Conductor Size: 400 KCMIL
• Material: Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION PIN ADAPTER, 400 KCMIL, 0.63" PLUG DIA, 1.60" PLUG LENGTH, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Offset Type; Tin Plated Aluminum Material; 3.43 Inch Overall Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 400 kcmil Conductor Size; Rubber Insulated Insulation Type; 2.81 Inch Length Cover Size; 0.63 Inch Diameter X 1.6 Inch Length Pin Size; HYPLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Color Pink; Die Index 300; Wire Strip Length 1 1/8 Inch; AYPO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810738467
• SKU Name: bur aypo400

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
