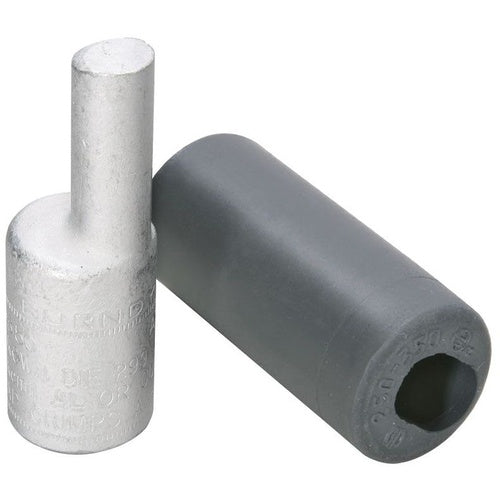

Burndy AYPO500 500 Termination Plug

Overview

Burndy AYPO500 500 Termination Plug

Product Specifications

• UPC: 78181073848
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.68 Inch Diameter x 1.6 Inch Length
• Cover Size: 3.16 Inch Length
• Overall Length: 3.43 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-9/16 Inch; Die Index 300; Color Code Pink
• Catalog Number: AYPO500
• Brand Name: Burndy
• Model: AYPO
• Type: Offset
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 500 KCMIL
• Material: Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION PIN ADAPTER, 500 KCMIL, 0.68" PLUG DIA, 1.60" PLUG LENGTH, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Offset Type; Tin Plated Aluminum Material; 3.43 Inch Overall Length; Copper/Aluminum Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 500 kcmil Conductor Size; EPDM Rubber Insulated Insulation Type; 3.16 Inch Length Cover Size; 0.68 Inch Diameter X 1.6 Inch Length Pin Size; Hyplug Brand; RoHS Compliant; Wire Strip Length 1-9/16 Inch; Die Index 300; Color Code Pink; AYPO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810738481
• SKU Name: bur aypo500
