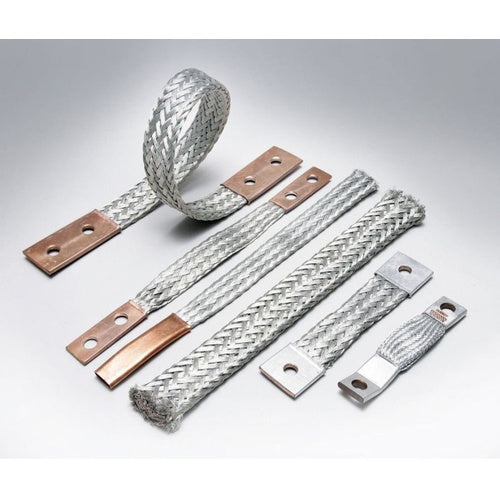

Burndy BD18 190A Flexible Copper Braid

Overview

Burndy BD18 190A Flexible Copper Braid

Product Specifications

• UPC: 78181080698
• Ferrule Material: Seamless Copper
• Hole Diameter: 0.44 Inch
• Hole Spacing: 1.25 Inch
• Approval: UL, UL 467, CSA C22.2
• Additional Information: RoHS Compliant; Number of Braid 1; Wire Size 1 AWG
• Catalog Number: BD18
• Model: B
• Current Rating: 190 Amp Indoor, 225 Amp Outdoor
• Length: 18 Inch
• Width: 0.94 Inch
• Thickness: 0.13 Inch
• Ferrule Length: 2.5 Inch
• Braid Material: Tin Plated Copper
• Catalog Description: COPPER BRAID, 18" LONG, 2 HOLES 2 FERRULES, 7/16" STUD, 1-1/4" STUD HOLE SPACING, 190 AMPS INDOOR, 225 AMPS OUTDOOR.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: 18 Inch; 0.94 Inch; 2.5 Inch Ferrule Length; UL, UL 467, CSA C22.2 Approval; 0.13 Inch Thickness; 190 Amp Indoor, 225 Amp Outdoor Current Rating; 0.44 Inch Hole Diameter; Seamless Copper Ferrule Material; 1.25 Inch Hole Spacing; Tin Plated Copper Braid Material; Braid Jumper Brand; RoHS Compliant; Number of Braid 1; Wire Size 1 AWG; B Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Grounding Flexible Braid Jumper
• Unspsc: 39121408
• UPC 12 Digit: 781810806982
• SKU Name: bur bd18

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
