Product information
Overview

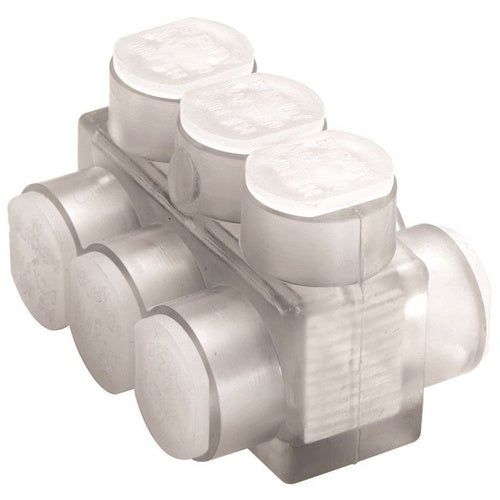

Burndy BIBD600-4 600-4 Two Sided Uni-Tap,5.28"
Product Specifications
- UPC: 78181022416
- Maximum Conductor Size: 600 KCMIL (Aluminum), 600 KCMIL Stranded (Copper)
- Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
- Approval: UL 486B, CSA
- Additional Information: RoHS Compliant; Temperature Rating 90 Deg C; Size 4.97 Inch L x 3 Inch W x 2.75 Inch H; Hex Key Size 3/8 Inch; Number of Screws 4
- Catalog Number: BIBD6004
- Brand Name: UNITAP[TM]
- Model: Type BIBD
- Voltage Rating: 600 V
- Number Of Ports: 4
- Cable Entry: 2-Side Entry
- Conductor Material: Aluminum/Copper
- Minimum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
- Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, 4 PORTS, #4 AWG-600 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
- Category: Large Terminals & Connectors
- Full Technical Description: 4 AWG (Aluminum), 4 AWG Stranded (Copper) min. Conductor Size; 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 4 Port(S); 2-Side Entry Cable Entry; Unitap Brand; RoHS Compliant; Temperature Rating 90 Deg C; Size 4.97 Inch L X 3 Inch W X 2.75 Inch H; Hex Key Size 3/8 Inch; Number of Screws 4; TYPE BIBD Model
- Made In Usa: Yes
- Manufacturer: Burndy Products
- Manufacturer Brand: Burndy Products
- Sub Category: Mechanical Multiple Cable Tap
- Unspsc: 39121427
- UPC 12 Digit: 781810224168
- SKU Name: bur bibd6004
