Product information
Overview

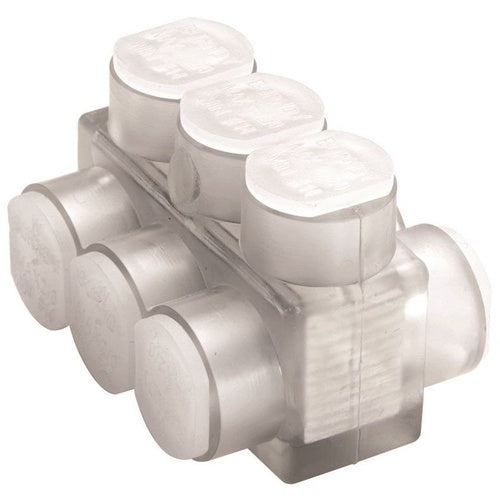

Burndy BIBD750-4 750-2 2-Sided-4 Uni-Tap
Product Specifications
- UPC: 78181023287
- Maximum Conductor Size: 750 KCMIL (Aluminum), 750 KCMIL Stranded (Copper)
- Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
- Approval: UL, CSA
- Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 5.63 Inch L x 3.38 Inch W x 3 Inch H; Hex Key Size 3/8 Inch; Number Of Screw 4
- Catalog Number: BIBD7504
- Brand Name: UNITAP[TM]
- Model: BIBD
- Voltage Rating: 600 V
- Number Of Ports: 4
- Cable Entry: 2 Side Entry
- Conductor Material: Aluminum/Copper
- Minimum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
- Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, 4 PORTS, #2 AWG-750 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
- Category: Large Terminals & Connectors
- Full Technical Description: 2 AWG (Aluminum), 2 AWG Stranded (Copper) min. Conductor Size; 750 kcmil (Aluminum), 750 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 4 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 5.63 Inch L X 3.38 Inch W X 3 Inch H; Hex Key Size 3/8 Inch; Number of Screw 4; BIBD Model
- Made In Usa: Yes
- Manufacturer: Burndy Products
- Manufacturer Brand: Burndy Products
- Sub Category: Mechanical Multiple Cable Tap
- Unspsc: 39121427
- UPC 12 Digit: 781810232873
- SKU Name: bur bibd7504
