Product information
Overview

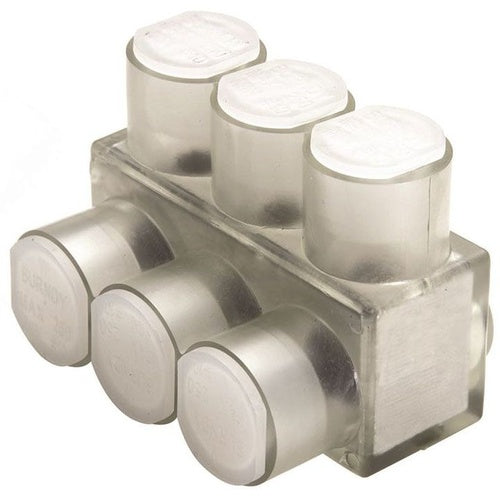

Burndy BIBS600-8 600-4 One Sided Uni-Tap
Product Specifications
- UPC: 78181022414
- Maximum Conductor Size: 600 KCMIL Stranded
- Body Material: Clear Plastisol Covered 6061-T6 Aluminum
- Approval: UL 486B, CSA
- Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 3/8 Inch; Number of Screw 8; Temperature Rating 90 Deg C
- Catalog Number: BIBS6008
- Brand Name: UNITAP[TM]
- Model: BIBS
- Voltage Rating: 600 Volt
- Number Of Ports: 8
- Cable Entry: 1-Side Entry
- Conductor Material: Copper/Aluminum
- Minimum Conductor Size: 4 AWG Stranded
- Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 8 PORTS, #4 AWG-600 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
- Category: Large Terminals & Connectors
- Full Technical Description: 4 AWG Stranded min. Conductor Size; 600 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 8 Port(S); 1-Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compliant; Type Insulated; Hex Key Size 3/8 Inch; Number of Screw 8; Temperature Rating 90 Deg C; BIBS Model
- Made In Usa: Yes
- Manufacturer: Burndy Products
- Manufacturer Brand: Burndy Products
- Sub Category: Mechanical Multiple Cable Tap
- Unspsc: 39121427
- UPC 12 Digit: 781810224144
- SKU Name: bur bibs6008
