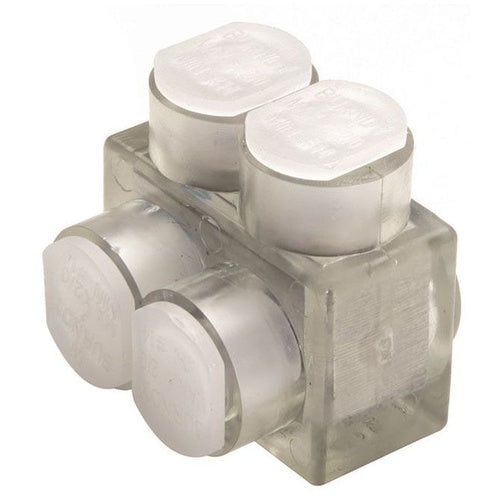

Burndy BIT-4 14-4 One Sided Uni-Tap,1.08"

Product Specifications

• UPC: 78181013414
• Maximum Conductor Size: 4 AWG Stranded
• Body Material: Clear Plastisol Covered 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 1/8 Inch; Number of Screw 2; Temperature Rating 90 Deg C
• Catalog Number: BIT4
• Brand Name: UNITAP[TM]
• Model: BIT
• Voltage Rating: 600 Volt
• Number Of Ports: 2
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 14 AWG Stranded
• Catalog Description: CLEAR PLASTISOL COVERED ALUMINUM MULTIPLE TAP CONNECTOR. 1-SIDE ENTRY, 2-PORT. SUITABLE FOR CODE CONDUCTOR, #14-4 AWG, AL/CU RATED, UL486B LISTED
• Category: Large Terminals & Connectors
• Full Technical Description: 14 AWG Stranded min. Conductor Size; 4 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 2 Port(S); 1-Side Entry Cable Entry; Unitap Brand; RoHS Compliant; Type Insulated; Hex Key Size 1/8 Inch; Number of Screw 2; Temperature Rating 90 Deg C; BIT Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810134146
• SKU Name: bur bit4
