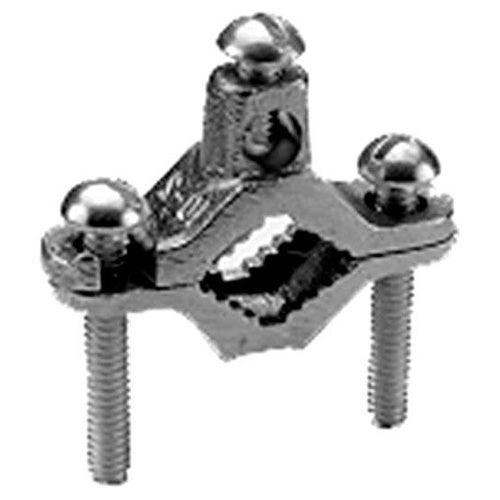

Burndy C22 Ground ClAMP Bare 1-1/4-2 K421639

Overview

Burndy C22 Ground Clamp Bare 1-1/4-2 K421639

Product Specifications

• UPC: 78181014231
• Additional Information: RoHS Compliant; Installation Torque 50 Inch-Pound (Pipe/Wire Clamp)
• Catalog Number: C22
• Conductor Size: 10 to 2 AWG Solid/Stranded (Copper)
• Ips Size: 1-1/4 to 2 Inch
• Size: 3.63 Inch Length x 0.75 Inch Width x 2.38 Inch Height
• Installation: (2) Screw Connector to Pipe
• Material: Solid Cast Bronze Alloy (Body), Zinc Plated Steel (Hardware)
• Approval: UL 467, CSA
• Used On: Grounding Conductor to Water Pipe/Copper Tube
• Catalog Description: CAST BRONZE GROUND CLAMP, CABLE TO WATER PIPE OR COPPER TUBE, 10 - 2 AWG, 1-1/4" - 2" WATER PIPE.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Solid Cast Bronze Alloy (Body), Zinc Plated Steel (Hardware) Material; 3.63 Inch Length X 0.75 Inch Width X 2.38 Inch Height Size; Grounding Conductor to Water Pipe/Copper Tube Used on; (2) Screw Connector to Pipe Installation; UL 467, CSA Approval; 10 to 2 AWG Solid/Stranded (Copper) Conductor Size; 1-1/4 to 2 Inch IPS Size; RoHS Compliant; Installation Torque 50 Inch-Pound (Pipe/Wire Clamp)
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810142318
• SKU Name: bur c22
