Burndy C-4 2-1/2 To 4" Ground ClAMP

Overview

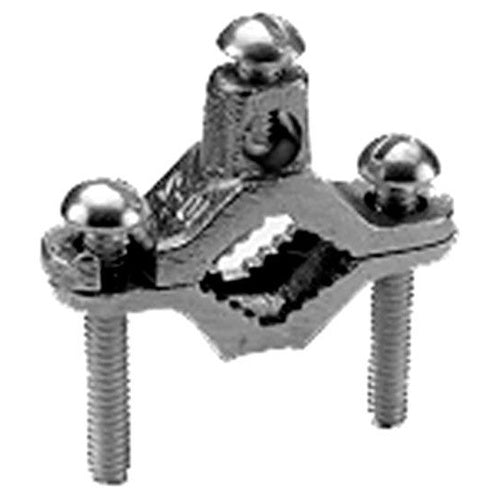

Burndy C-4 2-1/2 To 4" Ground Clamp

Product Specifications

• UPC: 78181014232
• Additional Information: RoHS Compliant; Installation Torque 50 Inch-Pound (Pipe/Wire Clamp)
• Catalog Number: C4
• Conductor Size: 10 to 2 AWG Solid/Stranded (Copper)
• Ips Size: 2-1/2 to 4 Inch
• Size: 6.25 Inch Length x 0.96 Inch Width x 4.13 Inch Height
• Installation: (2) Screw Connector to Pipe
• Material: Solid Cast Bronze Alloy (Body), Zinc Plated Steel (Hardware)
• Approval: UL 467, CSA
• Used On: Grounding Conductor to Water Pipe/Copper Tube
• Catalog Description: CAST BRONZE GROUND CLAMP, CABLE TO WATER PIPE OR COPPER TUBE, 10 - 2 AWG, 2-1/2"- 4" WATER PIPE.
• Category: Grounding & Bonding Equipment
• Full Technical Description: Solid Cast Bronze Alloy (Body), Zinc Plated Steel (Hardware) Material; 6.25 Inch Length X 0.96 Inch Width X 4.13 Inch Height Size; Grounding Conductor to Water Pipe/Copper Tube Used on; (2) Screw Connector to Pipe Installation; UL 467, CSA Approval; 10 to 2 AWG Solid/Stranded (Copper) Conductor Size; 2-1/2 to 4 Inch IPS Size; RoHS Compliant; Installation Torque 50 Inch-Pound (Pipe/Wire Clamp)
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810142325
• SKU Name: bur c4
