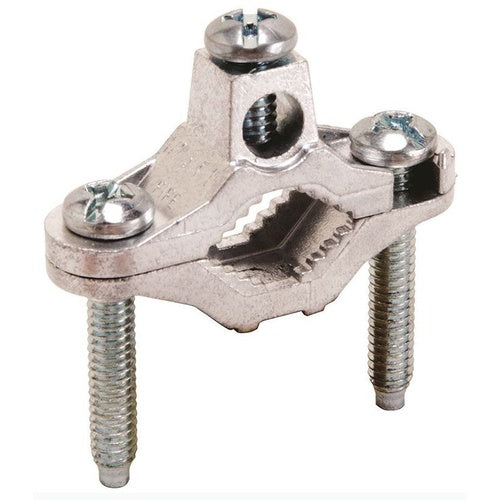

Burndy CZ11 1/2-1 Die Cast Bare Wire

Overview

Burndy CZ11 1/2-1 Die Cast Bare Wire

Product Specifications

• UPC: 78181014238
• Additional Information: RoHS Compatible; Installation Torque 50 Lb-Inch (Pipe Clamp, Wire Clamp)
• Catalog Number: CZ11
• Conductor Size: 10 to 2 AWG Stranded (Copper)
• Ips Size: 1/2 to 1 Inch
• Size: 2.25 Inch L x 0.56 Inch W x 1.56 Inch H
• Installation: (2) Screw Wire Connector to Pipe
• Material: Die-Cast Zinc Body, Zinc Plated Steel Hardware
• Approval: UL 467, CSA C22.2
• Used On: Grounding Clamp/Cable to Water Pipe
• Catalog Description: GROUNDING CLAMP, CABLE TO WATER PIPE, 10 - 2 AWG, 1/2" - 1" WATER PIPE, W/ ZINC PLATED SCREWS.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Die-Cast Zinc Body, Zinc Plated Steel Hardware Material; 2.25 Inch L X 0.56 Inch W X 1.56 Inch H Size; Grounding Clamp/Cable to Water Pipe Used on; (2) Screw Wire Connector to Pipe Installation; UL 467, CSA C22.2 Approval; 10 to 2 AWG Stranded (Copper) Conductor Size; 1/2 to 1 Inch IPS Size; RoHS Compatible; Installation Torque 50 lb-Inch (Pipe Clamp, Wire Clamp)
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810142387
• SKU Name: bur cz11
