Product information
Overview

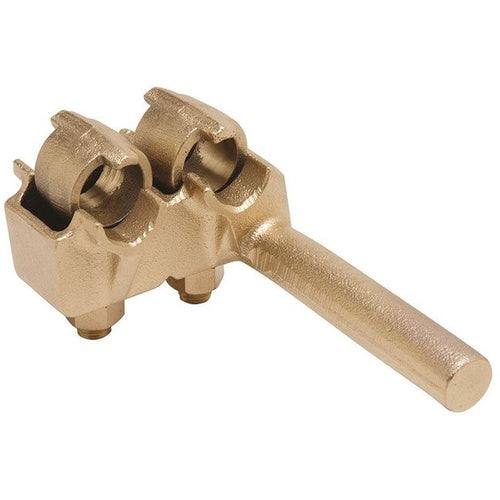

Burndy E4C34-G1 Terminal Adaptor
Product Specifications
- Catalog Description: MULTI-TAP, RANGE-TAKING CAST COPPER ALLOY CONNECTOR DESIGNED TO TAKE 4 CONDUCTORS FROM A SINGLE SECONDARY TRANSFORMER OUTLET
- Category: Large Terminals & Connectors
- Full Technical Description: Cast Copper Alloy Material; 6-1/4 Inch L X 6-7/8 Inch W X 3-7/8 Inch H Size; 1/0 AWG min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; 4 Conductor(S); 0.78 Inch Dia X 3-3/4 Inch L Stud Size; Cast Copper Alloy Stud Material; Bolt Size 1/2 Inch; Thread Per Inch 13; E-C-G Model
- Made In Usa: Yes
- Manufacturer: BURNDY PRODUCTS
- Sub Category: Tap Adapter With Lug
- Unspsc: 39121427
- UPC 12 Digit: 781810002087
- SKU Name: bur e4c34g1
