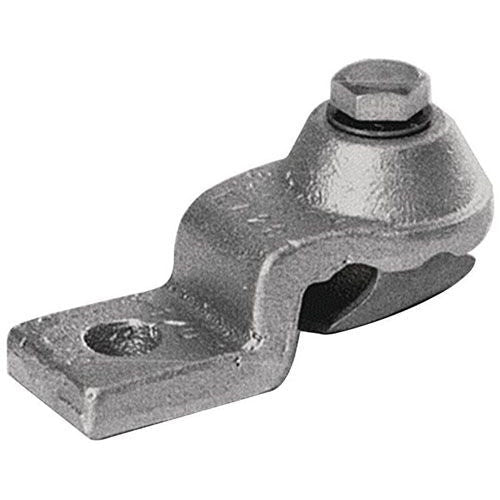

Burndy EA2C 2Str 1-Hole Copper Terminal Lug

Overview

Burndy EA2C 2Str 1-Hole Copper Terminal Lug

Product Specifications

• UPC: 78181032620
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 1.06 Inch L x 0.81 Inch W x 0.25 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 2.5 Inch
• Approval: UL 468-A, UL 468-B
• Additional Information: RoHS Compatible; Installation Torque 150 Lb-Inch
• Catalog Number: EA2C
• Brand Name: VERSILUG[TM]
• Model: EA
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG Solid/Stranded
• Maximum Conductor Size: 2 AWG Solid/Stranded
• Conductor Material: Copper
• Pad Type: Equipment
• Catalog Description: TYPE EA MECHANICAL LUG, COMPACT, HIGH COPPER ALLOY, 1-HOLE PAD, 3/8" STUD, #8 SOL-#2 STR,. CLAMPING ELEMENT IS ADJUSTABLE TO SEVERAL ANGLES.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 2.5 Inch Overall Length; 8 AWG Solid/Stranded min. Conductor Size; 2 AWG Solid/Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1.06 Inch L X 0.81 Inch W X 0.25 Inch Thk Pad Size; 1 Pad Hole(S); Equipment Pad Type; VERSILUG[TM] Brand; RoHS Compatible; Installation Torque 150 lb-Inch; EA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810326206
• SKU Name: bur ea2c
